PCB Inspection System

VT-S1080

The VT-S1080 is the world’s most advanced 3D AOI system, designed for maximum System Performance and High-Quality Productivity. Designed for flexible manufacturing, saving manpower with innovative AI Programming.

Features

First Pass Yield efficiency up to 99%
Industry-first MDMC Illumination: 3D imaging from all angles enables accurate inspection of complicated solder shapes
Elimination of Shadow and Secondary Reflection with 4-Direction MPS Projectors
Realization of Solder Wetting Direction directly relating to IPC Standards
Innovative AI tools that support skill-less labor-saving tuning
Full 3D compliance to IPC – based inspection
Advanced angle-view inspection of hidden solder joints
Developed with I4.0 in mind for advanced Machine to Machine communication
Multi-lateral system monitoring and Predictive Maintenance for 100%, utilization for Production
Global Library to maintain the same quality standard of manufacturing in all global sites
High reliability OCR / OCV image detection
Unique Single Hardware across all S10 Series Platform
Prepared for the next-generation hardware, camera/GPU/PC for higher detectability/speed capability

VT-S1080 PCB Inspection System

*1. Abbreviation of machine-to-machine. It is a mechanism to optimize the quality and equipment operation status without human intervention, made possible by enabling autonomous communication and exchange of information between various connected, production equipment.

M2M*1 system focusing on quality

Preventing defects by:
- Monitoring and reporting fluctuations in the measured values during production.
- Visualizing defect trends associated with chip mounter hardware such as heads and nozzles.
Visualizing the quality by:
- Process comparison,
- Displaying production status,

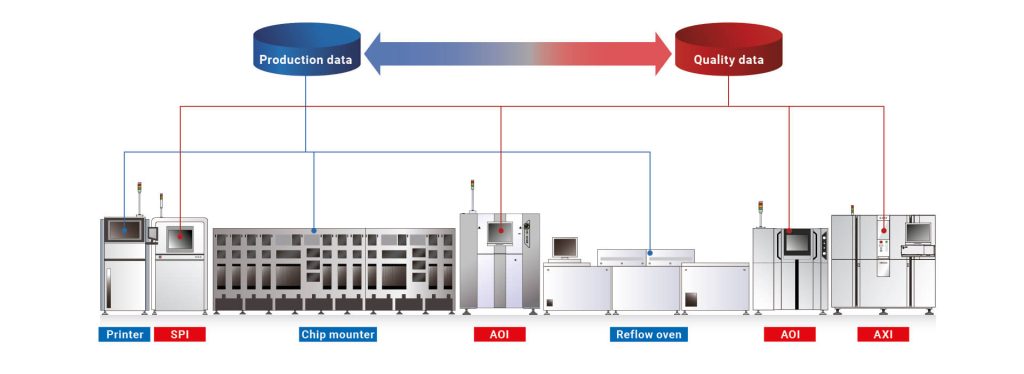

- Linking SPI/AOI/AXI systems.
Improving the first pass yield rate of the line by automatically calculating post-print/post-placement inspection criteria based on the inspection results after the solder reflow process.

AI-assisted qualitative inspection conforming to international standards

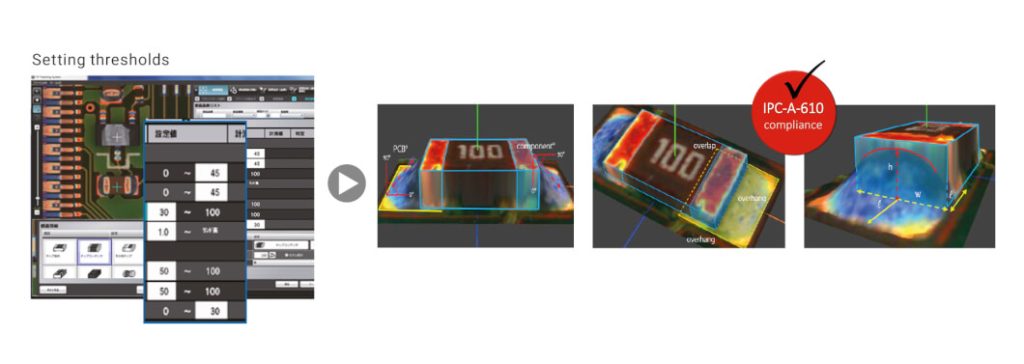

Since values conforming to the standards are directly applied as inspection criteria, there is no dependency on the skill and expertise of the programmer.

AI technology to minimize programming and visual inspecction efforts

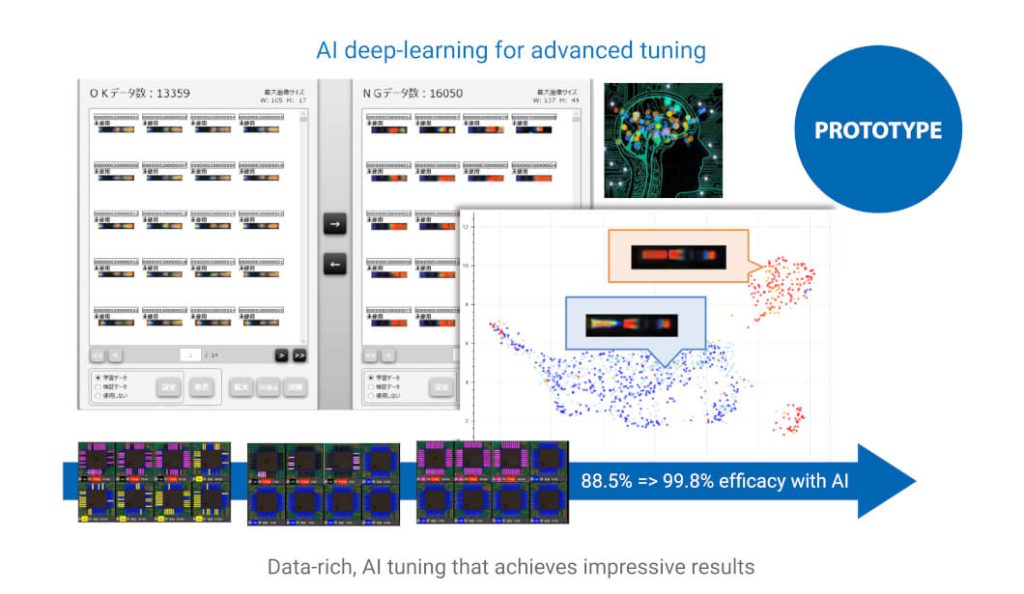

1. AI self-optimization

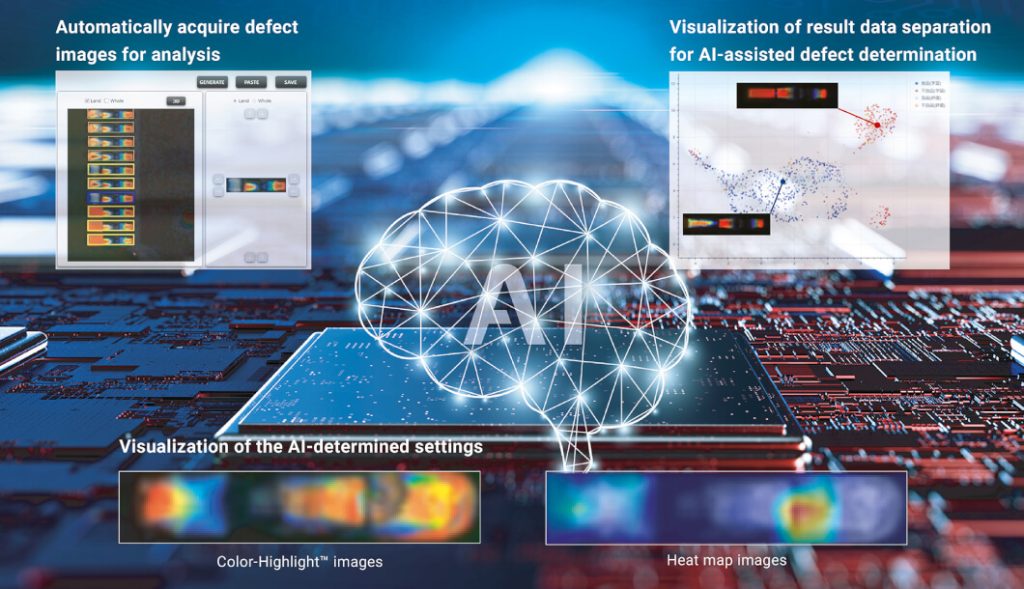

2. Automatically acquire defect images for analysis and visualization of result data separation for AI-assisted defect determination

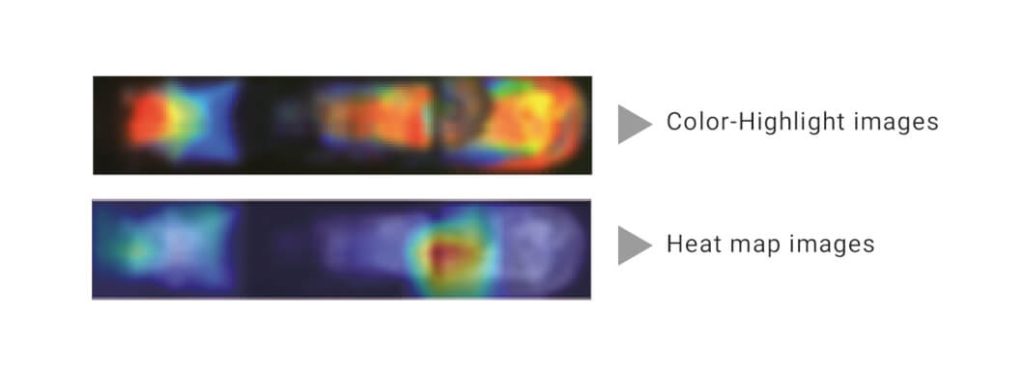

3. Visualization of the AI-determined settings

4. High-precision solder shape reconstruction

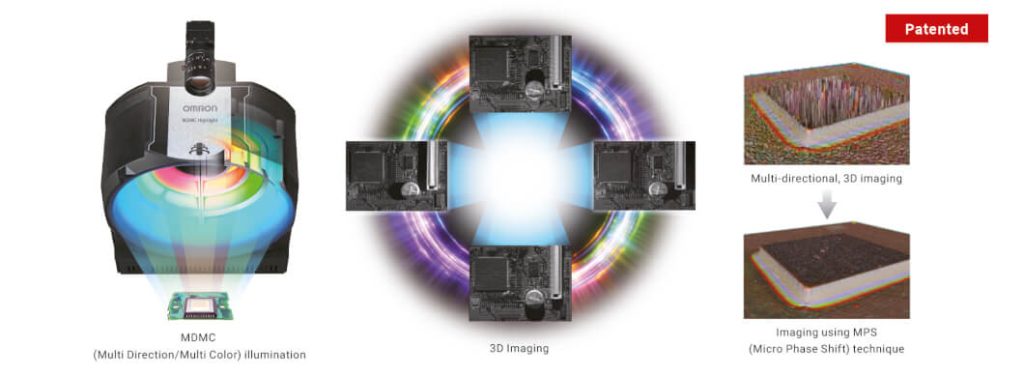

Equipped with out unique MDMC (Multi Direction / Multi Color) illumination and new MPS (MIcro Phase Patented Shift) more technique. This enables higher robust and reliable inspection performance.
