Industries Highest Capability Full 3D-AOI System

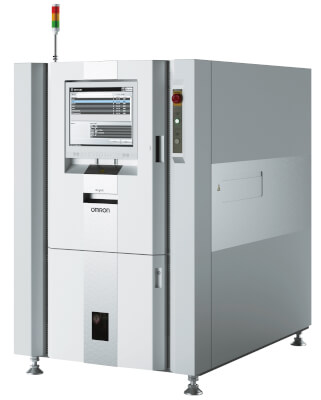

VT-S730-H

Complete 2D and 3D automated optical inspection, bundled with OMRON’s colour highlighting technology, detailed production monitoring tools, and fully offline programming and review station software.

Features

Top View 4Mpixel/12Mpixel Camera with Telecentric Lens.
4x Oblique-Angle Inspection Cameras
Latest 3D Programmable DLP Projectors (25mm max Height Inspection).
Omron’s Unique Color-Highlight Illumination Technology.
Real 3D Image Technology for Component and High-Quality Solder Joint Inspection.
Real-time Interactive 3D data feedback to the Programmer.
View and edit samples of all parts on the board simultaneously (in real-time) without interrupting Production.
Process histograms are created automatically for all inspection tests and components
AI self-optimization tools can perform automated inspection logic and criteria changes.
Real defect images can be stored in a Central library and used to improve the tuning process.
Full 3D Data Processing and realization of Industrial 4.0 Smart Factory Solution.
Industrial 4.0 connectivity with The Hermes Standard for Full M2M Connectivity.

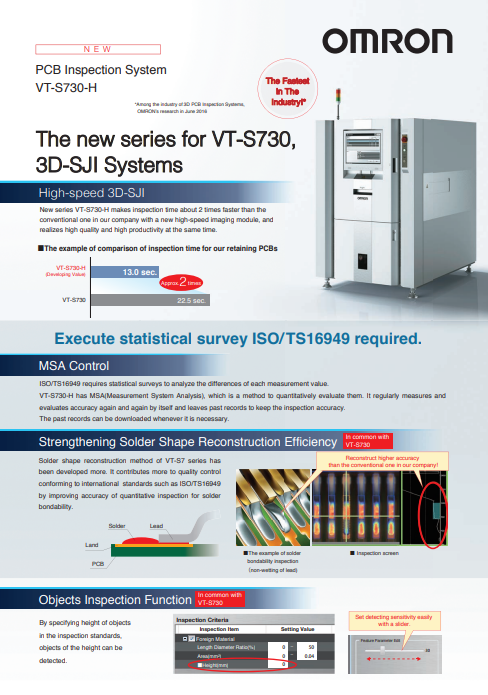

VT-S730-H

High-speed 3D-SJI

New series VT-S730-H makes inspection time about 2 times faster than the conventional one in our company with a new high-speed imaging module, and realizes high quality and high productivity at the same time.

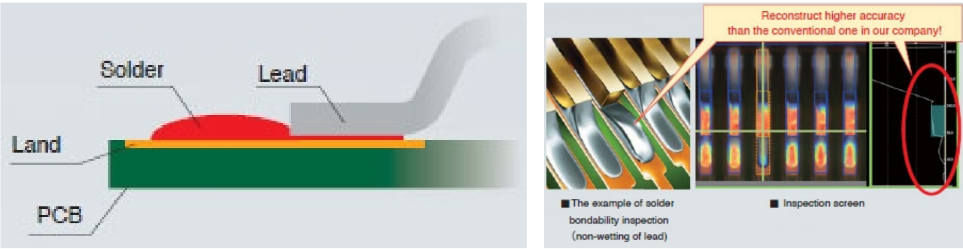

Strengthening Solder Shape Reconstruction Efficiency (In common with VT-S730)

Solder shape reconstruction method of VT-S7 series has been developed more. It contributes more to quality control conforming to international standards such as ISO/TS16949 by improving accuracy of quantitative inspection for solder bondability.

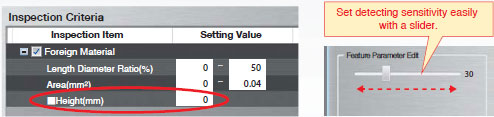

Objects Inspection Function (In common with VT-S730)

By specifying height of objects in the inspection standards, objects of the height can be detected.
