VT-X750

Fast 3D CT Automated X-Ray inspection, with a resolution of 3um, capable of diving a single solder joint into hundreds of cross-section slices for individual measurement and analysis.

Features

True 3D, CT, Volumetric X-Ray Imaging
Multiple Supported Resolutions (3um – 30um)
Dynamic 3D Rendering for Every
Inspected Solder Joint
Fast Inline and Repeatable Automated Inspection
Ultra-Low Dosage X-Ray Exposure
Intuitive, User-Friendly Software Interface
Complete Offline Programming and Review Stations
Automatic Component Model Creation for Quick and Easy Programming
Compatible with Omron’s Advanced Process Monitoring Software (Q-upNavi)
Omron’s World Class Service and Support

VT-X750 In-line Full Inspection System

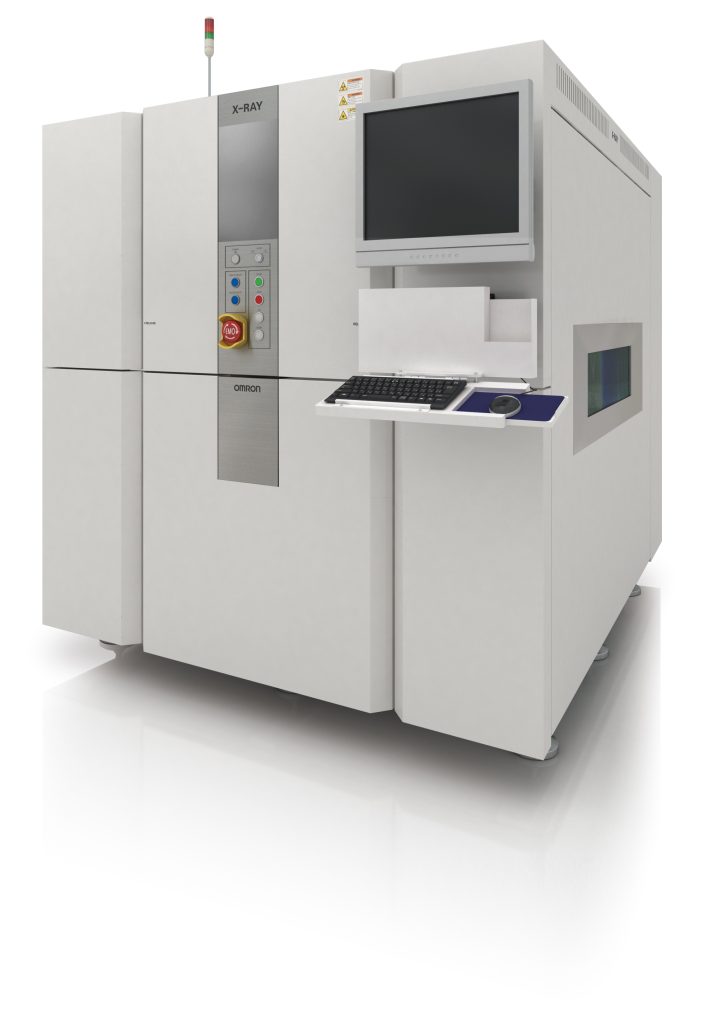

VT-X750 PCB X-Ray inspection machine

The VT-X750 improves upon our previous 3D-CT technology making it one the fastest X-Ray inspection system to date. The automated inspection logic has been improved for many parts such as IC heal fillets, stacked devices (PoP), through-hole components, press-fit connectors, and other bottom terminated parts. Increasing automated inspection speed and expanding inspection logic enables full, in-line inspection coverage by the 3D-CT method.
