MicroHAWK V430-F / V420-F / V330-F / V320-F

Autofocus Multicode Reader/Multicode Reader

MicroHAWK V430-F / V420-F / V330-F / V320-F

Autofocus to read codes at different distances.

MicroHAWK V430-F

V430-F V430-F[][][][]03M-[][][] V430-F[][][][]12M-[][][] V430-F[][][][]50C-[][][]
Symbologies
*1
1D Symbologies Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code
93, Pharmacode, PLANET, Postnet, Japanese Post, Australian Post, Royal
Mail, Intelligent Mail, KIX
2D Symbologies Data Matrix (ECC 0-200), QR Code, Micro QR Code, Aztec Code, DotCode
Stacked Symbologies PDF417, MicroPDF417, GS1 Databar (Composite and Stacked)
Reading
Performance
*2
Number of Reading
Digits
No Upper Limit (depending on bar width and reading distance)
Aiming Light Two Blue LEDs
Illumination Inner LEDs: Four White and Four Red (Wavelength: 625 nm)
Outer LEDs:
8 Red or White
Outer LEDs:
8 Red or White; 24 Red
or White for V430-
F[][][][]12M-R[][]
Outer LEDs:
8 White
Reading Distance/
Field of View
Refer to Read Ranges section for detail.

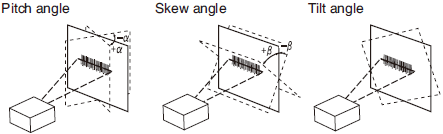

Pitch Angle (α) *3 ±30°
Skew Angle (β) *3 ±30°
Tilt Angle (γ) *3 ±180°
Capture
Focus Liquid Lens Autofocus or Fixed Focus (Wide = 5.2 mm, Medium = 7.7 mm,
Narrow = 16 mm, L = 16 mm)
Resolution 752 (H) x 480 (V) 1280 (H) x 960 (V) 2592 (H) x 1944 (V)
Color / Monochrome Monochrome CMOS Monochrome CMOS Color CMOS
Shutter Global Shutter Global Shutter Rolling Shutter
Frames per Second 60 fps 42 fps 5 fps
Exposure 50 to 100,000 μs
Image Logging FTP
Trigger External Trigger (Edge or Level), Communication Trigger (Ethernet,
RS-232C)
I/O
Specifications
Input Signals Trigger Input; New Master: Bi-Directional, Optoisolated, 4.5-28 V rated (10
mA @ 28 VDC)
Output Signals 3 Signals: Bi-Directional, Optoisolated, 1-28V rated, (ICE < 100 mA at
24VDC, current limited by user)
Communica-
tion
Connectivity RS-232C, Ethernet TCP/IP, EtherNet/IP, PROFINET
Ethernet Specifications 100BASE-TX / 10BASE-T
Indicator LEDs PASS (Green), TRIG (Amber), MODE (Amber), LINK (Amber), FAIL (Red),
PWR (Green)
Power Supply Voltage 5 to 30.0 VDC, 200 mV p-p max ripple
Current Consumption 0.18 A at 24 VDC (max.)
Environmental
Immunity *4
Ambient Temperature
Range
Operating: 0 to 45°C Storage: -50 to 75°C (No Icing or Condensation)
Ambient Humidity
Range
Operating and Storage: 5% to 95% (Non-Condensing)
Ambient Atmosphere No Corrosive Gases
Vibration Resistance
(Destructive)
Sine Vibration: 10 Hz to 55 Hz, 0.35 mm displacement, 20 cycles/axis.
Random Vibration: 20 Hz to 2000 Hz, 6.295 Grms, 30 min/axis
Shock Resistance
(Destructive)
50G, 11 ms, sawtooth profile. 3X in each X, Y, Z axis
Degree of Protection IEC 60529 IP65 and IP67
Weight Main Body Only Approx. 68 g
Packaging Weight Approx. 174 g (including packing)
Dimensions Main Body Dimensions 44.5 (W) × 44.5 (D) × 25.4 (H) mm
Packaging Dimensions 170 (W) × 117 (D) × 86 (H) mm
Accessories ReadMeFirst, CE Compliance Sheet
LED Safety Standard IEC 62471-1: 2006 Risk-Exempt Group
Safety Standards EN 55024:2010, EN 55032:2015 + AC:2016
FCC Part 15, Subpart B (Class B) UL60950-1
BIS
RCM, KC, EAC and BSMI Pending
Materials Case Aluminum Diecast, Alumite (Black)
Reading Window Acrylic
Software WebLink

*1. These symbologies are supported based on Omron’s read capability validation standard. Omron recommends that
     validation be performed for each application.
*2. Unless otherwise specified, reading performance is defined with center of field of view, angle R=∞.
*3.

MicroHAWK V430-F / V420-F / V330-F / V320-F Specifications 2

*4. In an electrically noisy environment, use only the V430-F in combination with a noise filter cable (V430-W[]F-[]M) to
     ensure proper operation.

MicroHAWK V420-F

V420-F V420-F[][][][]03M-[][][] V420-F[][][][]12M-[][][] V420-F[][][][]50C-[][][]
Symbologies
*1
1D Symbologies Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code
93, Pharmacode, PLANET, Postnet, Japanese Post, Australian Post, Royal
Mail, Intelligent Mail, KIX
2D Symbologies Data Matrix (ECC 0-200), QR Code, Micro QR Code, Aztec Code, DotCode
Stacked Symbologies PDF417, MicroPDF417, GS1 Databar (Composite and Stacked)
Reading
Performance
*2
Number of Reading
Digits
No Upper Limit (depending on bar width and reading distance)
Aiming Light Two Blue LEDs
Illumination Inner LEDs: Four White and Four Red (Wavelength: 625 nm)
Outer LEDs:
8 Red or White
Outer LEDs:
8 Red or White
Outer LEDs:
8 White
Reading Distance/
Field of View
Refer to Read Ranges section for detail.

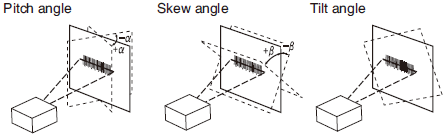

Pitch Angle (α) *3 ±30°
Skew Angle (β) *3 ±30°
Tilt Angle (γ) *3 ±180°
Capture
Focus Liquid Lens Autofocus or Fixed Focus (Wide = 5.2 mm, Medium = 7.7 mm,
Narrow = 16 mm, L = 16 mm)
Resolution 752 (H) x 480 (V) 1280 (H) x 960 (V) 2592 (H) x 1944 (V)
Color / Monochrome Monochrome CMOS Monochrome CMOS Color CMOS
Shutter Global Shutter Global Shutter Rolling Shutter
Frames per Second 60 fps 42 fps 5 fps
Exposure 50 to 100,000 μs
Image Logging FTP
Trigger External Trigger (Edge or Level), Communication Trigger (Ethernet,
RS-232C)
I/O
Specifications
Input Signals Trigger Input: 5-28 V rated (0.16 mA @ 5V DC); New Master: 5 to 28 V rated
(0.16 mA @ 5 VDC); Default: 3.3 V rated (0 mA @ 3.3 V)
Output Signals 3 Signals: 5 V TTL-compatible, can sink 10 mA and source 10 mA
Communica-
tion
Connectivity RS-232C, USB 2.0 High Speed, Ethernet over USB/HID
Ethernet Specifications 100BASE-TX / 10BASE-T
Indicator LEDs PASS (Green), TRIG (Amber), MODE (Amber), LINK (Amber), FAIL (Red),
PWR (Green)
Power Supply Voltage 5 VDC +/- 5%
Current Consumption 650 mA at 5 VDC (max.)
Environmental
Immunity *4
Ambient Temperature
Range
Operating: 0 to 45°C Storage: -50 to 75°C (No Icing or Condensation)
Ambient Humidity
Range
Operating and storage: 5% to 95% (Non-Condensing)
Ambient Atmosphere No Corrosive Gases
Vibration Resistance
(Destructive)
Sine Vibration: 10 Hz to 55 Hz, 0.35 mm displacement, 20 cycles/axis.
Random Vibration: 20 Hz to 2000 Hz, 6.295 Grms, 30 min/axis
Shock Resistance
(Destructive)
50G, 11 ms, sawtooth profile. 3X in each X, Y, Z axis
Degree of Protection IEC 60529 IP54
Weight Main Body Only 120 g
Packaging Weight Approx. 230 g (including packing)
Dimensions Main Body Dimensions 44.5 (W) × 38.1 (D) × 25.4 (H) mm
Packaging Dimensions 170 (W) × 117 (D) × 86 (H) mm
Accessories ReadMeFirst, CE Compliance Sheet
LED Safety Standard IEC 62471-1: 2006 Risk-Exempt Group
Safety Standards EN 55024:2010, EN 55032:2015 + AC:2016
FCC Part 15, Subpart B (Class A) UL60950-1
BIS
RCM, KC, EAC and BSMI Pending
Materials Case Aluminum Diecast, Alumite (Black)
Reading Window Acrylic
Software WebLink

*1. These symbologies are supported based on Omron’s read capability validation standard. Omron recommends that
      validation be performed for each application.
*2. Unless otherwise specified, reading performance is defined with center of field of view, angle R=∞.
*3.

MicroHAWK V430-F / V420-F / V330-F / V320-F Specifications 5

*4. In an electrically noisy environment, use only the V430-F in combination with a noise filter cable (V430-W[]F-[]M) to
     ensure proper operation.

MicroHAWK V330-F

V330-F V330-F[][][][]03M-
[][][]
V330-F[][][][]12M-
[][][]
V330-F[][][][]50C-
[][][]
Symbologies
*1
1D Symbologies Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code
93, Pharmacode, PLANET, Postnet, Japanese Post, Australian Post, Royal
Mail, Intelligent Mail, KIX
2D Symbologies Data Matrix (ECC 0-200), QR Code, Micro QR Code, Aztec Code, DotCode
Stacked Symbologies PDF417, MicroPDF417, GS1 Databar (Composite and Stacked)
Reading
Performance
*2
Number of Reading
Digits
No Upper Limit (depending on bar width and reading distance)
Aiming Light Two Blue LEDs
Illumination Inner LEDs: Four White and Four Red (Wavelength: 625 nm)
Outer LEDs:
None
Outer LEDs:
None
Outer LEDs:
None
Reading Distance/
Field of View
Refer to Read Ranges section for detail.

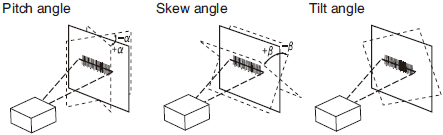

Pitch Angle (α) *3 ±30°
Skew Angle (β) *3 ±30°
Tilt Angle (γ) *3 ±180°
Capture
Focus Fixed Focus (Wide = 5.2 mm, Medium = 7.7 mm, Narrow = 16 mm)
Resolution 752 (H) x 480 (V) 1280 (H) x 960 (V) 2592 (H) x 1944 (V)
Color / Monochrome Monochrome CMOS Monochrome CMOS Color CMOS
Shutter Global Shutter Global Shutter Rolling Shutter
Frames per Second 60 fps 42 fps 5 fps
Exposure 50 to 100,000 μs
Image Logging FTP
Trigger Communication Trigger (Ethernet)
I/O
Specifications
Input Signals Ethernet
Output Signals Ethernet
Communica-
tion
Connectivity Ethernet TCP/IP
Ethernet Specifications 100BASE-TX / 10BASE-T
Indicator LEDs PASS (Green), PWR (Green)
Power Supply Voltage Source: 44-57 VDC IEEE802.3af POE
Current Consumption Max Current: 0.10A
Environmental
Immunity *4
Ambient Temperature
Range
Operating: 0 to 40°C Storage: -50 to 75°C (No Icing or Condensation)
Ambient Humidity
Range
Operating and Storage: 5% to 95% (Non-Condensing)
Ambient Atmosphere No Corrosive Gases
Vibration Resistance
(Destructive)
Oscillation Frequency: 10 to 150Hz, Half Amplitude: 0.35 mm, Vibration
Direction: X/Y/Z, Sweep Time: 8 minute/count, Sweep Count: 10 times
Shock Resistance
(Destructive)
Impact Force: 150 m/s2, Test Direction: 6 directions, three times each (up/
down, front/back, left/right)
Degree of Protection IEC 60529 IP40
Weight Main Body Only 72 g
Packaging Weight Approx. 180 g (including packing)
Dimensions Main Body Dimensions 40 (W) × 63 (D) × 24 (H) mm
Packaging Dimensions 170 (W) × 117 (D) × 86 (H) mm
Accessories ReadMeFirst, CE Compliance Sheet
LED Safety Standard IEC 62471-1: 2006 Risk-Exempt Group
Safety Standards EN 55024:2010, EN 55032:2015 + AC:2016
FCC Part 15, Subpart B (Class B) UL60950-1
BIS
RCM, KC, EAC and BSMI Pending
Materials Case Aluminum Diecast, Alumite (Black)
Reading Window Acrylic
Software WebLink

*1. These symbologies are supported based on Omron’s read capability validation standard. Omron recommends that
      validation be performed for each application.
*2. Unless otherwise specified, reading performance is defined with center of field of view, angle R=∞.
*3.

MicroHAWK V430-F / V420-F / V330-F / V320-F Specifications 8

*4. In an electrically noisy environment, use only the V430-F in combination with a noise filter cable (V430-W[]F-[]M) to
     ensure proper operation.

MicroHAWK V320-F

V320-F V320-F[][][][]03M-
[][][]
V320-F[][][][]12M-
[][][]
V320-F[][][][]50C-
[][][]
Symbologies
*1
1D Symbologies Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code
93, Pharmacode, PLANET, Postnet, Japanese Post, Australian Post, Royal
Mail, Intelligent Mail, KIX
2D Symbologies Data Matrix (ECC 0-200), QR Code, Micro QR Code, Aztec Code, DotCode
Stacked Symbologies PDF417, MicroPDF417, GS1 Databar (Composite and Stacked)
Reading
Performance
*2
Number of Reading
Digits
No Upper Limit (depending on bar width and reading distance)
Aiming Light Two Blue LEDs
Illumination Inner LEDs: Four White and Four Red (Wavelength: 625 nm)
Outer LEDs:
None
Outer LEDs:
None
Outer LEDs:
None
Reading Distance/
Field of View
Refer to Read Ranges section for detail.

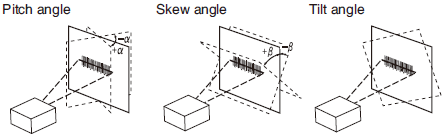

Pitch Angle (α) *3 ±30°
Skew Angle (β) *3 ±30°
Tilt Angle (γ) *3 ±180°
Capture
Focus Fixed Focus (Wide = 5.2 mm, Medium = 7.7 mm, Narrow = 16 mm)
Resolution 752 (H) x 480 (V) 1280 (H) x 960 (V) 2592 (H) x 1944 (V)
Color / Monochrome Monochrome CMOS Monochrome CMOS Color CMOS
Shutter Global Shutter Global Shutter Rolling Shutter
Frames per Second 60 fps 42 fps 5 fps
Exposure 50 to 100,000 μs
Image Logging FTP
Trigger External Trigger (Edge or Level), Communication Trigger (Ethernet,
RS-232C)
I/O
Specifications
Input Signals Trigger Input: 5-28 V rated (0.16 mA @ 5 VDC); Default: 3.3 V rated (0 mA
@ 3.3 V)
Output Signals One Signal (Strobe): 5 V TTL-compatible, can sink 10 mA and source 10 mA
Communica-
tion
Connectivity USB 2.0 Full-Speed (Ethernet over USB and HID), RS-232
Ethernet Specifications 100BASE-TX / 10BASE-T
Indicator LEDs PASS (Green), PWR (Green)
Power Supply Voltage 5 VDC +/- 5%
Current Consumption 450 mA at 5 VDC (max.)
Environmental
Immunity *4
Ambient Temperature
Range
Operating: 0 to 40°C Storage: -50 to 75°C (No Icing or Condensation)
Ambient Humidity
Range
Operating and Storage: 5% to 95% (Non-Condensing)
Ambient Atmosphere No Corrosive Gases
Vibration Resistance
(Destructive)
Oscillation Frequency: 10 to 150 Hz, Half Amplitude: 0.35 mm, Vibration
Direction: X/Y/Z, Sweep Time: 8 minute/count, Sweep Count: 10 times
Shock Resistance
(Destructive)
Impact Force: 150 m/s2, Test Direction: 6 directions, three times each (up/
down, front/back, left/right)
Degree of Protection IEC 60529 IP40
Weight Main Body Only 59 g
Packaging Weight Approx. 166 g (including packing)
Dimensions Main Body Dimensions 52 (W) × 39 (D) × 24 (H) mm
Packaging Dimensions 170 (W) × 117 (D) × 86 (H) mm
Accessories ReadMeFirst, CE Compliance Sheet
LED Safety Standard IEC 62471-1: 2006 Risk-Exempt Group
Safety Standards EN 55024:2010, EN 55032:2015 + AC:2016
FCC Part 15, Subpart B (Class B) UL60950-1
BIS
RCM, KC, EAC and BSMI Pending
Materials Case Aluminum Diecast, Alumite (Black)
Reading Window Acrylic
Software WebLink

*1. These symbologies are supported based on Omron’s read capability validation standard. Omron recommends that
      validation be performed for each application.
*2. Unless otherwise specified, reading performance is defined with center of field of view, angle R=∞.
*3.

MicroHAWK V430-F / V420-F / V330-F / V320-F Specifications 11

*4. In an electrically noisy environment, use only the V430-F in combination with a noise filter cable (V430-W[]F-[]M) to
     ensure proper operation.

Details of the form which isn't in this page see a Data Sheet (Q258-E1), please.
