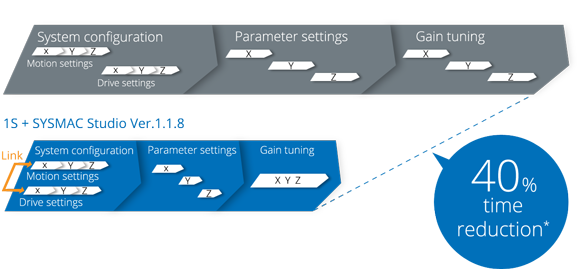

Performance comparison with previous Sysmac Studio version
based on Omron investigation in January 2017.
THE ISSUE:Â Before the 1S Servo, each drive in the machine has to be configured and monitored with separate configuration windows. Multiple configurations are required to adjust and monitor parameters.

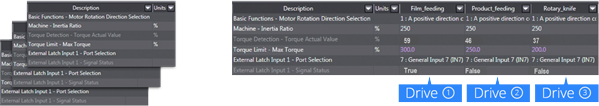

OUR SOLUTION:Â SYSMAC Studio multi drive parameter and monitor window provides an intuitive way for drive set-up. This brand-new way of presenting data helps users immensely, greatly reducing unforeseen errors, as a result making parameter settings seem a breeze.
Application Example

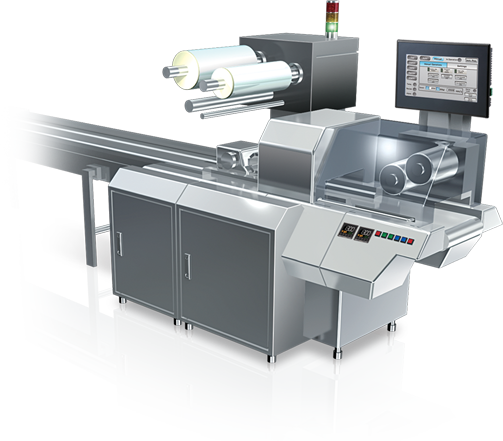

Packaging Machine
THE ISSUE:Â For machines with a large number of axis, manual setting of drive parameters is needed for each and every drive and axis. This consumes much time and also increases the room for misstep in configuration.
OUR SOLUTION:Â With our Parameter Copy Transmission feature, all other similar drives can be configured with the exact same parameters with Sysmac Studio, after configuring a single drive in the machine. This one-time axis configuration is replicated to multiple drives in only a few seconds.
Application Example

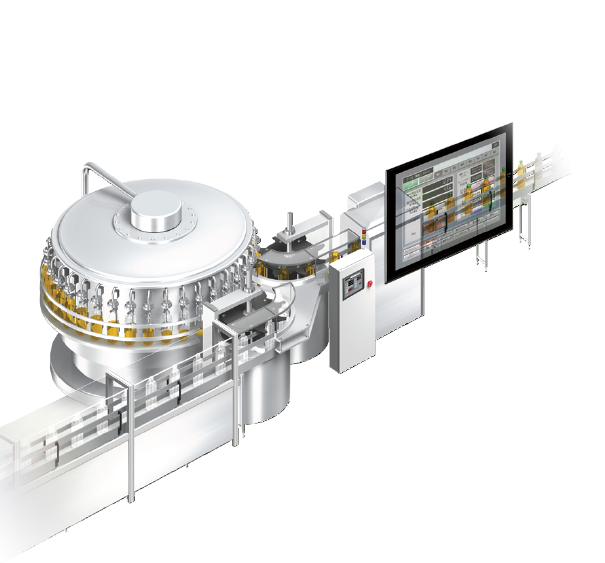

Filling Machine
THE ISSUE:Â The existing method of tuning multiple axis one by one is extremely laborious and tedious, as much effort is required to adjust numerous axis individually for best results.

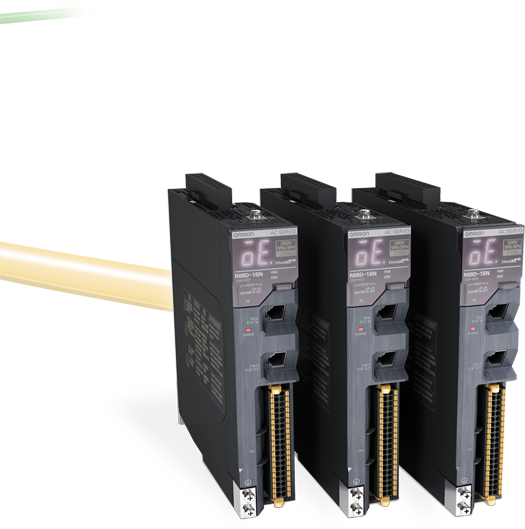

OUR SOLUTION:Â The Multi Axis Tuning Wizards of our automation platform, SYSMAC Studio, allows for simultaneous tuning of multiple axis in a short amount of time. The sheer simplicity of this function allows even non-expert users to achieve ideal system performance.
Application Example

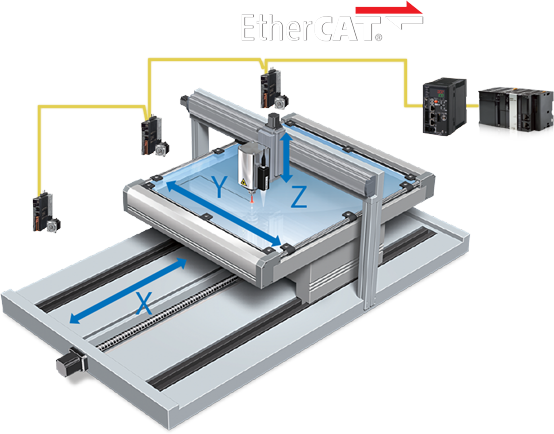

Alignment of glass substrate
OMRON Servo Motor Sizing Tool not only helps you easily select the right servo size, but also allows visualization of your total machine system through a graphic environment.
