STABLE DETECTION OF PACKAGING
WHEN LOT CHANGES

With increasing diversified product packages, there are cases where the packaging colors differs from lot to lot. This may result in false detection. OMRON brings innovation to manufacturing sites through automation with “integrated,” “intelligent”, and “interactive” concepts with our new color mark sensors.

Challenges Faced When Packaging
Color Varies From Lot To Lot

In cases where the colors of packaging materials vary from lot to lot, false detection of color mark could occur if parameters are not adjusted. This could lead to equipment stoppage.

In such cases, it can be difficult to determine the root cause, resulting in decreased productivity and time lost from troubleshooting.

Introducing OMRON’s
New Color Mark Sensors

Visualization of Color Variations For Print Makes Troubleshooting Easier

OMRON’s new Color Mark Photoelectric Sensor (E3S-DC) and Color Fiber Amplifier Unit (E3NX-CA) provide support on color variations printed on packaging, thus reducing downtime.

Color Mark
Photoelectric Sensor
(E3S-DC)

Visualization Of Color Variation Via RGB Data Transmission Function

1

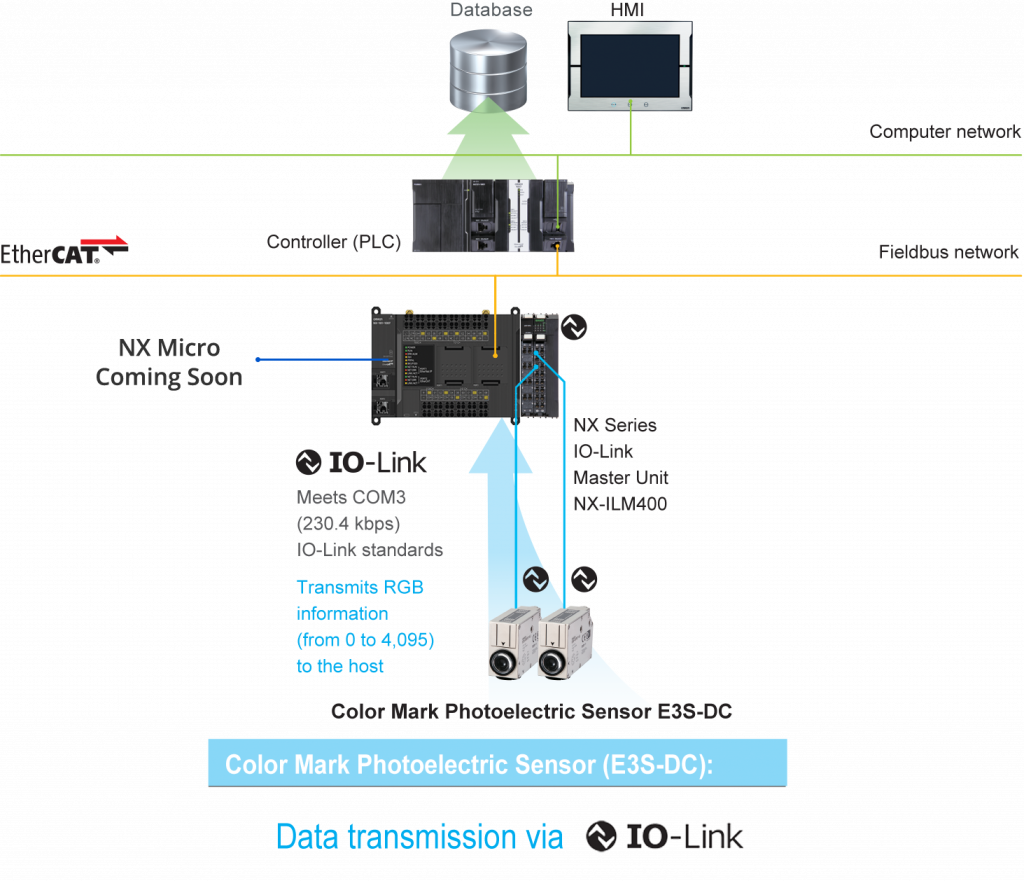

RGB Data Transmission Function
RGB information for color marks and backgrounds of each lot is transmitted to a host to be deciphered.

This information is then managed with a database, making it possible to set optimal thresholds and identify causes quickly if a problem arises.

During Commissioning

Previously, setting threshold during commissioning required the involvement of a technical expert. With the data transmission function, optimal setting is achieved simply by registering the RGB ratio of a packaging.

During Maintenance

When the sensor makes a false detection, values can be easily checked to determine if the reading error is due to the color variation in lot changes. This makes it easier to troubleshoot and resolve such error.

2

Test Parameter Support Function
Test Parameter Support Function The test parameter support function allows users to determine whether accurate detection is possible for packaging designs in the prototyping stage.

Package designers and production engineers are able to use quantified RGB digital data to discuss the designs. This allows them to reach a quick decision on which design to use, shortening lead time from design to production line commissioning.
View More Product Specifications

Color Fiber
Amplifier Unit
(E3NX-CA)

Visualization Of Color Variation Via RGB Data Transmission Function

1

RGB Data Transmission Function
RGB information for color marks and backgrounds of each lot is transmitted to a host to be deciphered.

This information is then managed with a database, making it possible to set optimal thresholds and identify causes quickly if a problem arises.

During Commissioning

Previously, setting threshold during commissioning required the involvement of a technical expert. With the data transmission function, optimal setting is achieved simply by registering the RGB ratio of a packaging.

During Maintenance

When the sensor makes a false detection, values can be easily checked to determine if the reading error is due to the color variation in lot changes. This makes it easier to troubleshoot and resolve such error.

2

Test Parameter Support Function
The test parameter support function allows users to determine whether accurate detection is possible for packaging designs in the prototyping stage.

Package designers and production engineers are able to use quantified RGB digital data to discuss the designs. This allows them to reach a quick decision on which design to use, shortening lead time from design to production line commissioning.
View More Product Specifications

Achieve stable detection for your packaging line today!
